OSP Industrial Components

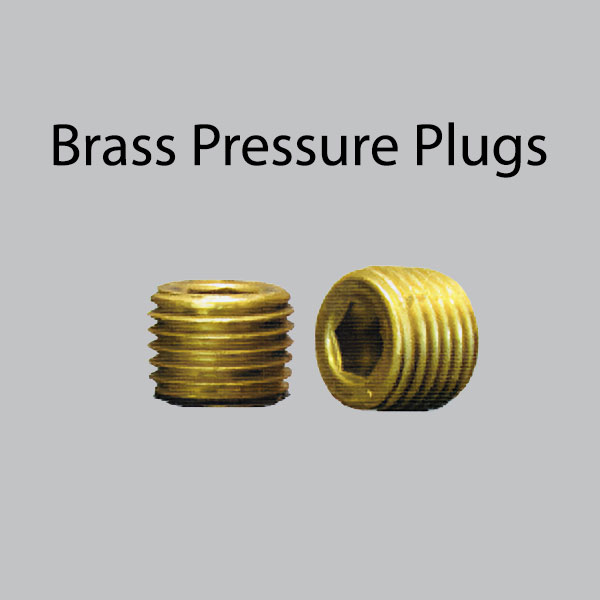

Brass Pressure Plugs
OSP Brass Pressure Plugs are engineered for reliability and durability in high-pressure systems. With both threaded and unthreaded options, they provide secure sealing solutions across a range of applications.
Key Features
-
Standard plugs feature a 7/8” taper per foot flush seal
-
Threaded and unthreaded designs available
-
Withstands pressures up to 72 psi
-
Precision-machined brass for long service life

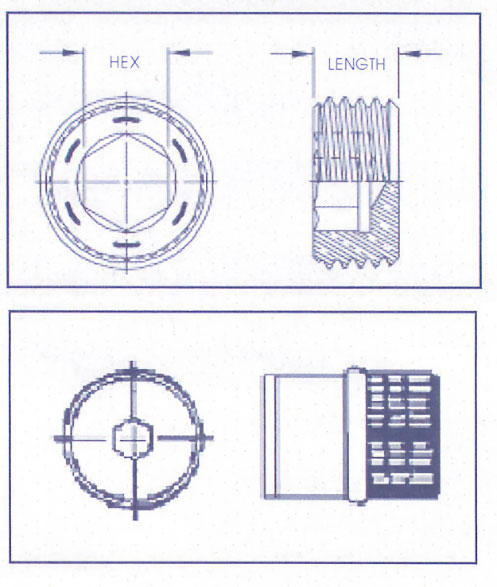

| No. | Threads/Inch | Length | Hex Key Size | Tap/Drill |
|---|---|---|---|---|
| Threaded | ||||
| ICBP5 | 1/16"-27 | 0.25 | 5/32" | 3/16" |
| ICBP10 | 1/8"-27 | 0.25 | 3/16" | 21/64" |
| ICBP20 | 1/4"-18 | 0.41 | 1/4" | 27/64" |
| ICBP40 | 3/8"-18 | 0.41 | 5/16" | 9/16" |
| ICBP60 | 1/2"-14 | 0.53 | 3/8" | 11/16" |
| ICBP100 | 3/4"-14 | 0.53 | 9/16" | 57/64" |
| ICBP140 | 1"-11 1/2 | 0.66 | 5/8" | 1-1/8" |
| Unthreaded | ||||
| ICTPM0008 DIA. | .311" / 7.90mm | |||
| ICTPM0010 DIA. | .389" / 9.88mm | |||
| ICTPM0012 DIA. | .454" / 11.53mm | |||
| ICTPM0016 DIA. | .605" / 15.37mm | |||
