OSP Industrial Components

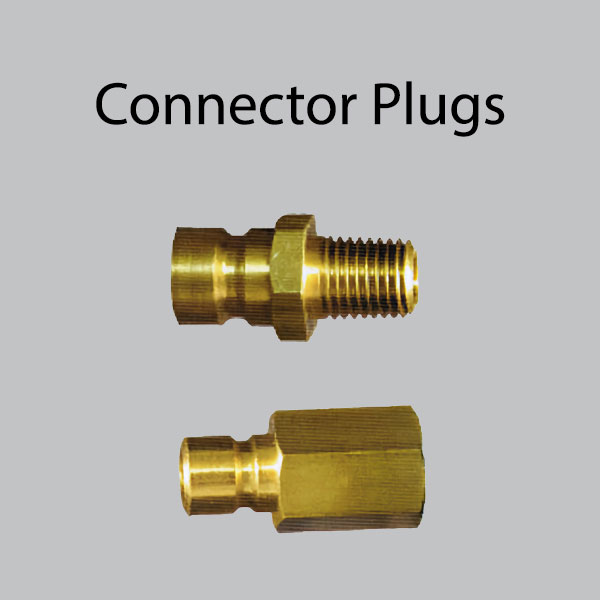

Connector Plugs
OSP Connector Plugs are available with male or female threads and can be used for either flush mounting or external mounting. Designed for reliability, these plugs are compatible with flow-thru, 1-way, and 2-way shut-off sockets.
Built for demanding environments, Connector Plugs withstand temperatures up to 400°F (204°C) and pressures up to 200 psi, making them ideal for a wide range of applications.
Key Features
-
Available with male or female threads
-
Withstands up to 400°F (204°C) and 200 psi
-

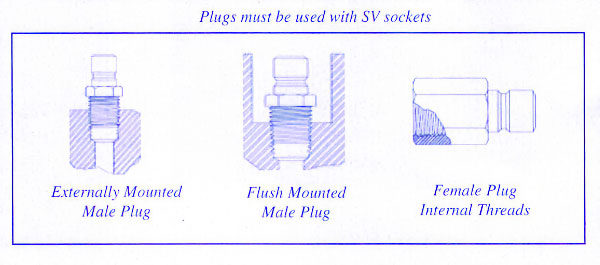

Options for flush mounting or external mounting
-

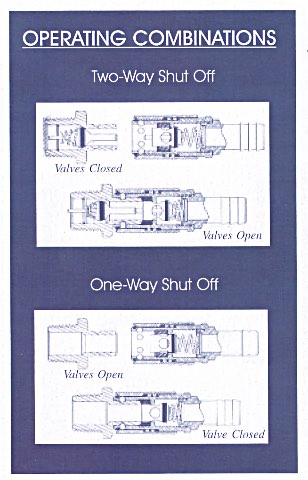

Compatible with flow-thru, 1-way, and 2-way shut-off sockets
-
Multiple series sizes available (200, 300, 500)
| Series | Male Plug | Female Plug | 2-Way | Thread Size N.P.T. | Thru-Hole | Hex Size |
|---|---|---|---|---|---|---|
| 200 Series | ||||||
| 200 | ICM 250 | ICF 250 | 1/16" | 1/4" | 7/16" | |
| 200 | ICM 251 | ICF 251 | 1/8" | 1/4" | 7/16" | |
| 200 | ICM 252 | ICF 252 | ICM 252-SV | 1/4" | 1/4" | 9/16" |
| 200 | ICM 253 | ICF 253 | ICM 253-SV | 1/4" | 1/4" | 11/16" |
| 300 Series | ||||||
| 300 | ICM 351 | ICF 351 | 1/8" | 3/8" | 9/16" | |
| 300 | ICM 352 | ICF 352 | ICM 352-SV | 1/4" | 3/8" | 9/16" |
| 300 | ICM 353 | ICF 353 | ICM 353-SV | 3/8" | 3/8" | 11/16" |
| 300 | ICM 354 | ICF 354 | ICM 354-SV | 1/2" | 3/8" | 7/8" |
| 500 Series | ||||||
| 500 | ICM 553 | ICF 553 | ICM 553-SV | 3/8" | 5/8" | 7/16" |
| 500 | ICM 554 | ICF 554 | ICM 554-SV | 1/2" | 5/8" | 15/16" |
| 500 | ICM 556 | ICF 556 | ICM 556-SV | 3/4" | 5/8" | 1-1/8" |
