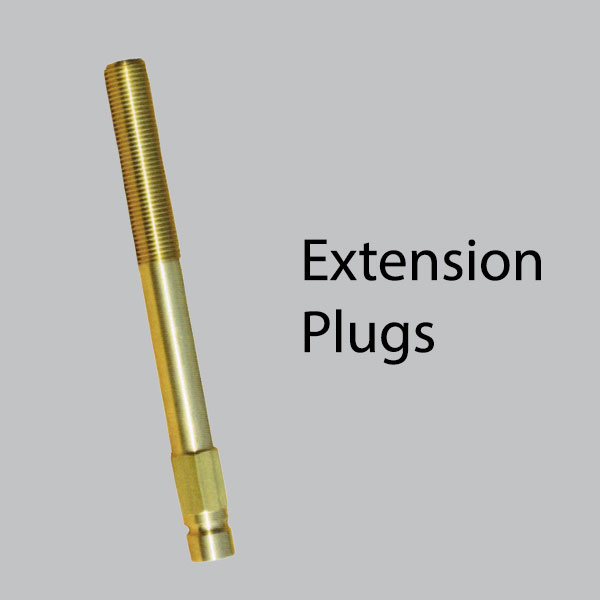

Extension Plugs
OSP Extension Plugs are designed with one-piece solid brass construction for durability and ease of use. They are fully compatible with flow-thru, 1-way, and 2-way shut-off sockets, offering flexibility for a wide range of applications.
The straight threaded area allows for easy length adjustments without the need for tapering or re-threading. Standard lengths are available for 200 and 300 series sockets, with special lengths available upon request.
Key Features
-
One-piece brass construction for strength and durability
-
Compatible with flow-thru, 1-way, and 2-way shut-off sockets
-
Straight threaded design allows for easy length adjustments
-
No tapering or re-threading required
-
Special lengths available upon request

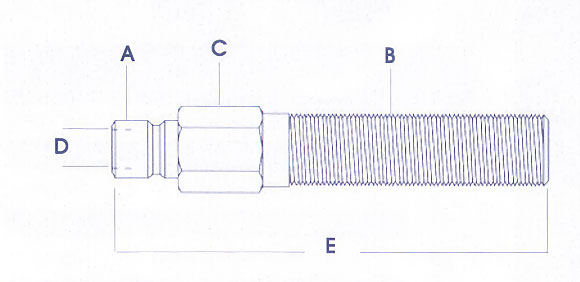

| Series | Part No. | Pipe Thread Size | Hex Size | I.D. Orifice | Overall Length | Use with Sockets |
|---|---|---|---|---|---|---|
| 200 Series | ||||||
| 200 | ICX 2514 | 1/8" | 7/16" | 1/4" | 4" | 200/204 to 226/226 (V & SV) |
| 200 | ICX 2516 | 1/8" | 7/16" | 1/4" | 6" | |
| 200 | ICX 2518 | 1/8" | 7/16" | 1/4" | 8" | |
| 200 | ICX 2524 | 1/4" | 9/16" | 1/4" | 4" | |
| 200 | ICX 2526 | 1/4" | 9/16" | 1/4" | 6" | |
| 200 | ICX 2528 | 1/4" | 9/16" | 1/4" | 8" | |
| 200 | ICX 2534 | 3/8" | 11/16" | 1/4" | 4" | |
| 200 | ICX 2536 | 3/8" | 11/16" | 1/4" | 6" | |
| 200 | ICX 2538 | 3/8" | 11/16" | 1/4" | 8" | |
| 300 Series | ||||||
| 300 | ICX 3512 | 1/4" | 9/16" | 3/8" | 4" | 300/306 to 328/328 (V & SV) |
| 300 | ICX 3516 | 1/4" | 9/16" | 3/8" | 6" | |
| 300 | ICX 3518 | 1/4" | 9/16" | 3/8" | 8" | |
| 300 | ICX 3524 | 1/4" | 9/16" | 3/8" | 4" | |
| 300 | ICX 3526 | 1/4" | 9/16" | 3/8" | 6" | |
| 300 | ICX 3528 | 1/4" | 9/16" | 3/8" | 8" | |
| 300 | ICX 3534 | 3/8" | 11/16" | 3/8" | 4" | |
| 300 | ICX 3536 | 3/8" | 11/16" | 3/8" | 6" | |
| 300 | ICX 3538 | 3/8" | 11/16" | 3/8" | 8" | |
